Horizon
Horizon
Unconventional e-bike system to let you ride beyond limits. It features an automatic energy recovery system, similar to hybrid cars, working in addition to a slope and road quality sensor to optimize your pedaling effort. *The All In One Horizon features a more refined mechanical and sensors equipment to deliver these functionalities.

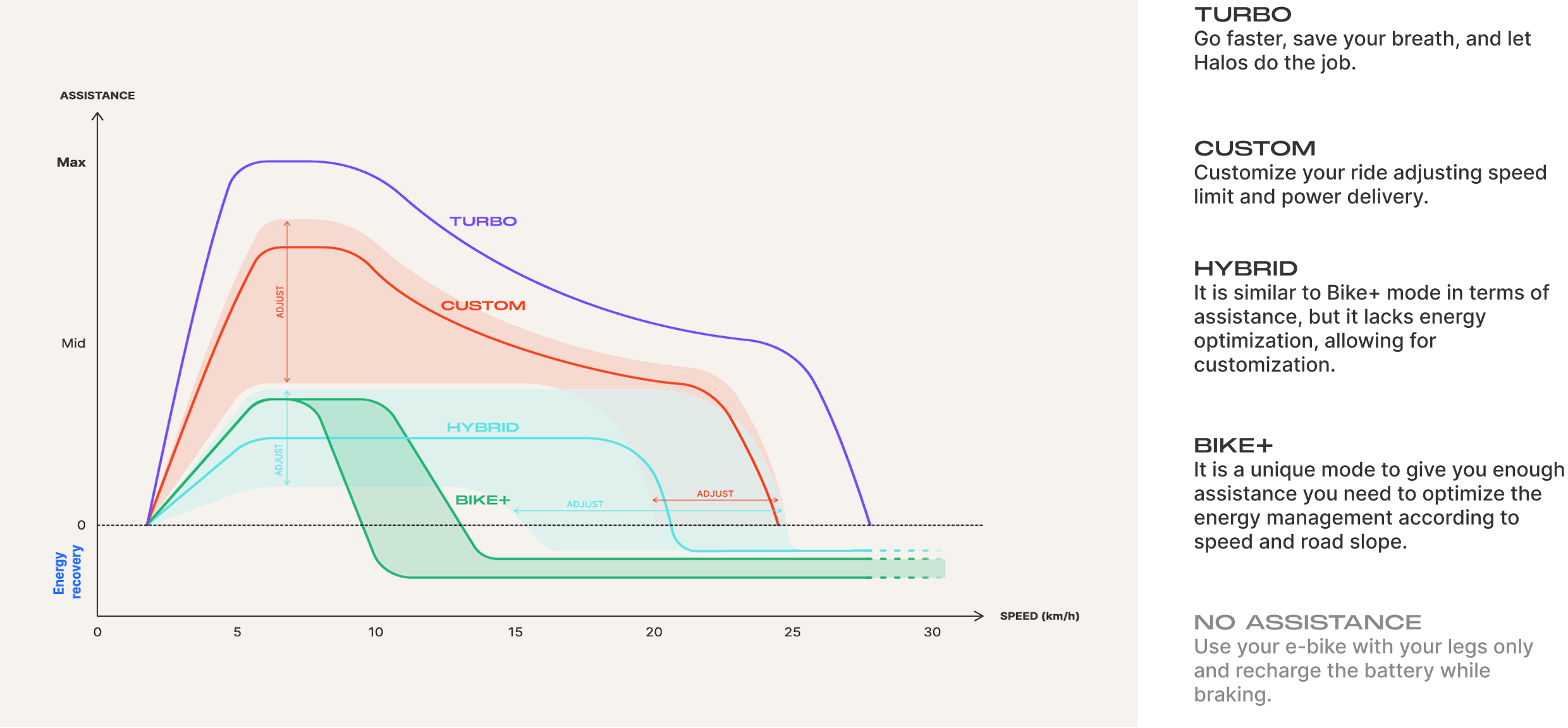

Power Modes
No assistance (Off)
Use your e-bike with your legs only and recharge the battery while braking.
Bike+
It is a unique mode to give you enough assistance you need to optimize the energy management, thanks to its adaptation it is deploying the power or regenerating it according to the speed and road slope.
Hybrid
It is similar to the Bike+ mode in terms of assistance, but it lacks the automatic adaptation of the power delivery. It provides the power intensity in relation with the speed according to your customization.
Custom
Customize your ride adjusting speed limit and power delivery.
Turbo
Go faster, save your breath, and let Horizon do the job.
Go faster, save your breath, and let Horizon do the job.
It all works in unison. The integrated motor, battery and electronics works seamless to assist the cyclist while pedaling then to recover energy when back pedaling.
Features
Details
Slope and road quality detection
Horizon features an advanced sensor equipment to optimize the assistance helping you accelerating when climb hills then recover energy on the flatter or downhill terrain.
Extended range
Through the smart and automatic energy optimization of Bike+ mode it is possible to significantly extend the range capabilities of the e-bike delivering power when necessary and recovering energy to recharge the battery accordingly.

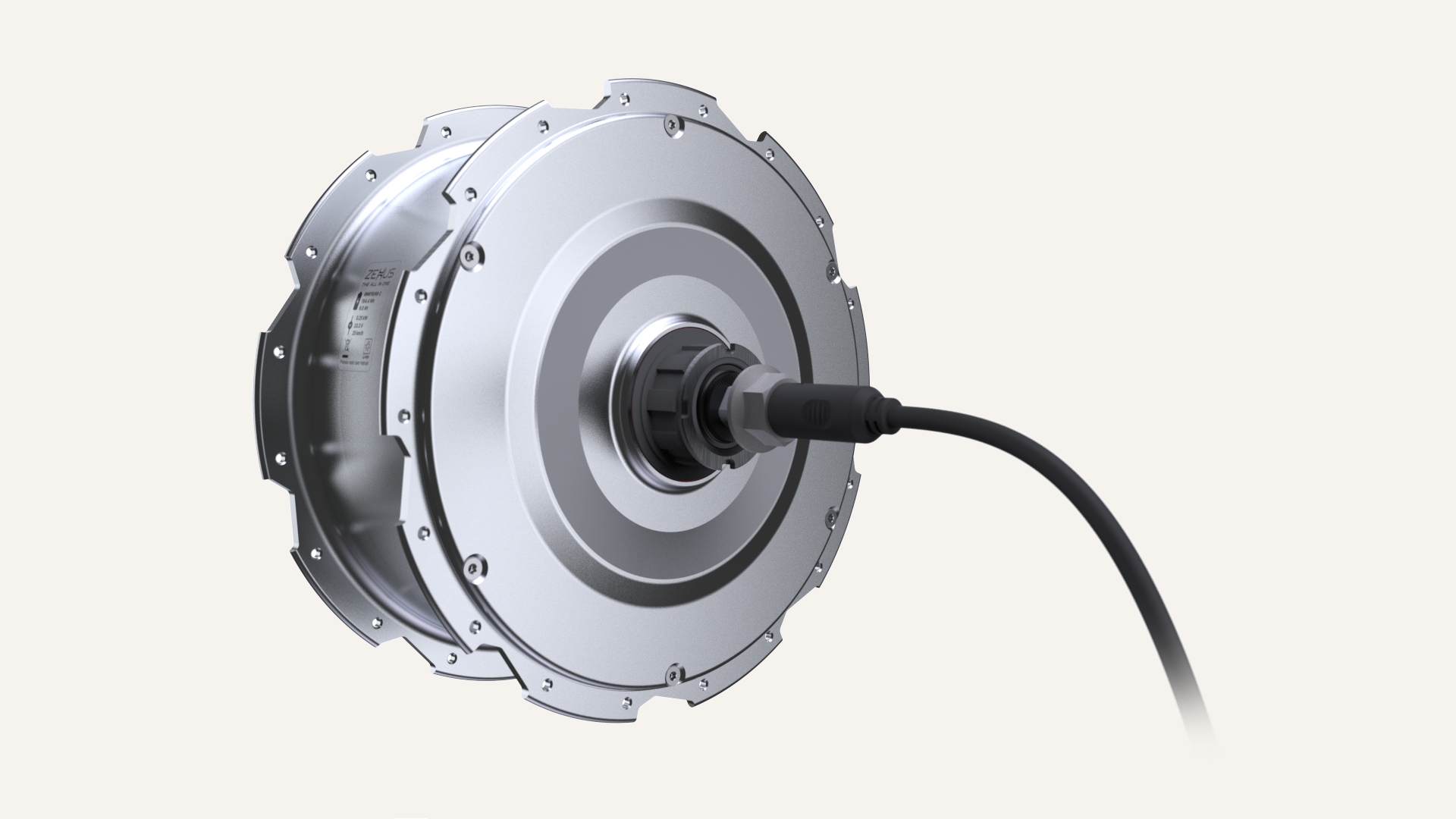

Light and compact motor
Our design choice is to configure the system as light and compact to result only one device to be installed on the frame through the rear wheel.
Digital connectivity to power up your ride
You can enhance the use of your system using the Zehus wireless ecosystem to control The All In One Horizon while riding, to set it before and to check it after.
The motor functionality is expanded using the Controller, the Zehus App and 3rd party displays.
Electric lock
Lock your motor with the apps to enhance the security of the bike while parked.
Customizable power modes
Customize your riding experience adjusting the motor parameters.
Smart electronics
Horizon is the first and only pedal assisted e-bike system that doesn’t need to be recharged, it allows you to ride in an assist level where you will never have to recharge the battery from an electrical outlet.
K.E.R.S
The integrated Kinetic Energy Recovery System allows the motor to collect braking energy to recharge the batteries, it is activated manually with a back-pedal movement or with the Controller, and automatically in Bike+ mode.
Tech Specs
Motor power
250 W
Torque
40 Nm
Power modes
5 (No assistance, Bike+, Hybrid, Custom, Turbo)
Speed limit
25 km/h
Average Range
25 km (Turbo) - Infinite km (Bike+)
Battery
30 V Li-ion 173 Wh
Weight
3 Kg
K.E.R.S.
Yes
Automatic Energy Recovery
Yes, automatic
Speed
Single speed
Rim size
16" to 29"
Brakes compatibility
Disc 6 bolts- Rim brake - Roller brake
